AryaSea · Built on AryaOS
Instant maritime domain awareness in TAK.
AryaSea is the AryaAir platform tuned for the sea. A high-performance dual-channel AIS receiver decodes vessel position and identity and streams it directly into any TAK product, standalone or across the network.
Function
Over-the-air or network-fed vessel tracking.
AISCOT accepts decoded AIS data and publishes standards-based TAK events. No client-side TAK plugin is required.

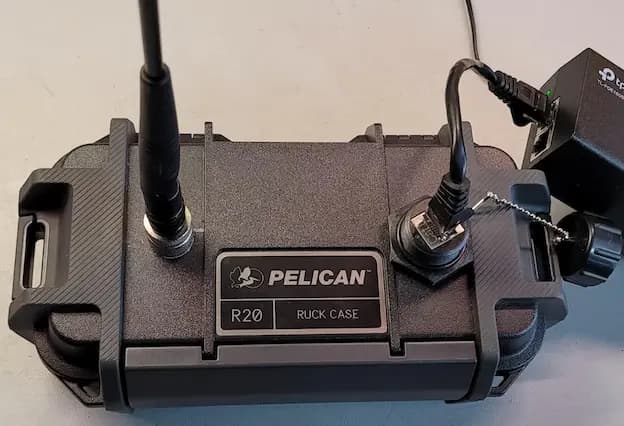

The former SeaTAK appliance combined the receiver, decoder, gateway, and local network in one portable case. That deployment model remains available by consultation.
Primary receiver
What makes AryaSea unique.
- AIS receiver
- Wegmatt daisy-CATCHER — high-performance dual-channel receiver
- Channels
- 161.975 MHz (A) & 162.025 MHz (B)
- Decoding
- Class A & B vessel decoding, long-range reception
- RF & antennas
- DISCO32 45" blade antenna (maritime VHF receive); 50Ω TNC receive; SMA GPS antenna
- Protocols & standards
- Cursor on Target (CoT), TAK Protocol, AIS NMEA 0183, KML, JSON
Compute, power & connectivity
The common AryaOS hardware platform.
- Compute
- ARM Cortex-A76 quad-core, 16 GB RAM, NVMe SSD edge compute
- Power & network
- USB-C PD; IEEE 802.3af/at PoE+; Gigabit Ethernet
- Positioning
- 99-channel GNSS; 50Ω TNC receive + SMA GPS ports
- Connectivity
- Standalone Wi-Fi, Ethernet, or Bluetooth to EUD; MANET/IP mesh via COTBridge; backhaul to TAK Server or operations center
- Enclosure
- Standardized portable enclosure, pouch-compatible
Software
AryaOS and the AryaSea gateway stack.
- AryaOS (Linux) with Node-RED and PyTAK
- AISCOT gateway
- GPSTAK and COTBridge browser configuration
- Universal AryaOS features: web UI, GPS spoof/jam detection, mesh routing, mesh node management, OTA upgrades, on-device maps
Typical use
Where AryaSea gets deployed.
- Maritime domain awareness and vessel tracking
- Port, harbor, and waterway security
- Search and rescue and coastal monitoring
Legacy catalog
SeaTAK data preserved from the prior site.
- Function
- Self-contained AIS-to-TAK gateway
- Supported clients
- ATAK, WinTAK, iTAK, TAK Server
- Connectivity
- Local operation without a TAK client plugin
- Former catalog price
- $1,500; listed as sold out on the prior site
